Aeroqual Fixed Gas Monitors – SM70

Price on request

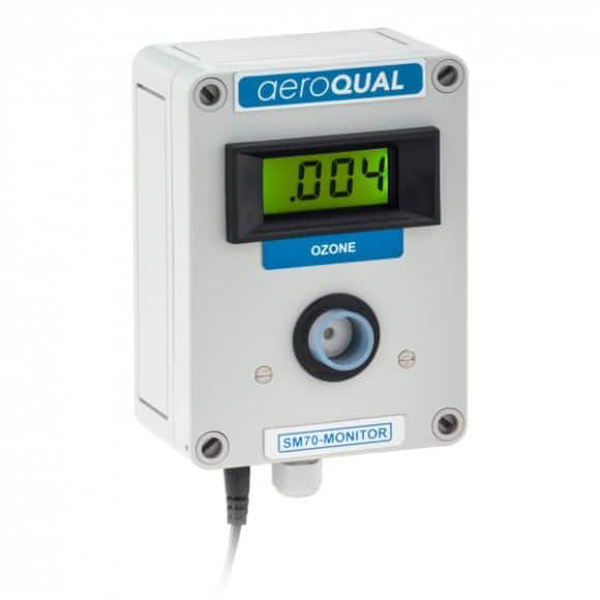

Our SM70 Fixed Indoor Air Quality Monitors are low cost and feature-packed designed for a wide range of indoor and industrial applications.

Clear
Add to Enquiry


Description

Our SM70 Fixed Indoor Air Quality Monitors are low cost and feature-packed designed for a wide range of indoor and industrial applications. The gas monitors come with an integrated LCD display, RS232 and RS485, 0-5V outputs and audible alarm, which can be configured to a user defined set point. They also come with a 12VDC power supply that plugs directly into the monitor and mains power allowing for easy set up and installation.

The gas sensor board is factory set to one of three optional firmware settings to control the relay and alarm functionality:

1. Alarm above (AA) – The relay is programmed to energise above your defined set point. Typical applications include health and safety alarm warning systems and switching external equipment on and off.
2. Alarm below (AB) – The relay is programmed to energize below your defined set point. Typical applications include fail safe warning systems and control of an ozone generator.
3. Control 10% (C10) – The relay is programmed to open and close ±10% within your defined control band. Typical applications include maintaining a specific gas concentration between user defined levels via the control of an external device e.g. an ozone generator.

The ozone sensors available for this product can be seen in the sensors tab. They use Aeroqual designed Gas Sensitive Semiconductor sensors for improved accuracy and measurement. The gas sensor modules can be easily replaced with a new module when calibration is due.

This product is compatible with Aeroqual Cloud and Datastream.

Additional information

Measures

Ozone

Range

0-0.15 ppm, 0-0.5 ppm, 0-10 ppm

Functionality

Bare Sensor

Available for Rent

No

Supplier

Aeroqual


Warning: array_combine(): Both parameters should have an equal number of elements in /home/hydroter/public_html/wp-content/themes/hydroterra_live/functions.php on line 375

Warning: array_combine(): Both parameters should have an equal number of elements in /home/hydroter/public_html/wp-content/themes/hydroterra_live/functions.php on line 401

Aeroqual is changing the way people understand the air they breathe. We make simple tools that companies, communities and citizens can use to monitor and respond, in real-time, to air pollution wherever they live, work and play.

Established in 2001, Aeroqual has spent more than a decade perfecting sensor-based air quality measurements in a variety of applications and climates in more than 50 countries worldwide.

Their products have been tried and tested by high profile customers such as U.S. Environmental Protection Agency, New York Department of Environmental protection, Samsung, NASA, and AECOM. Most recently, they have signed a five-year Cooperative Research and Development Agreement (CRADA) with the United States Environmental Protection Agency (U.S. EPA) to advance low-cost air sensor technology. As the shift towards sensor-based air quality monitoring accelerates Aeroqual is setting the standard for others to follow.

Sensors have many advantages over traditional measurement techniques, but so far few companies have been able to produce credible and defensible air quality measurements. This is especially true in outdoor ambient monitoring applications where low detection levels and environmental factors make sensor-based measurement extremely challenging.

Making defensible air quality measurements using relatively low cost sensors requires unique skills, experience and technology. We have developed and continue to develop deep and multi-disciplinary expertise covering:

  • Sensor design, fabrication and calibration
  • Signal processing and algorithms
  • Instrument design and development
  • Application and support of instruments in the field
  • Atmospheric science

We have invested in bespoke calibration and production facilities in Auckland, New Zealand which operate under ISO 9001:2008. Our people are experts in the field, determined to help customers realize the benefits from sensor-based air quality measurement.
