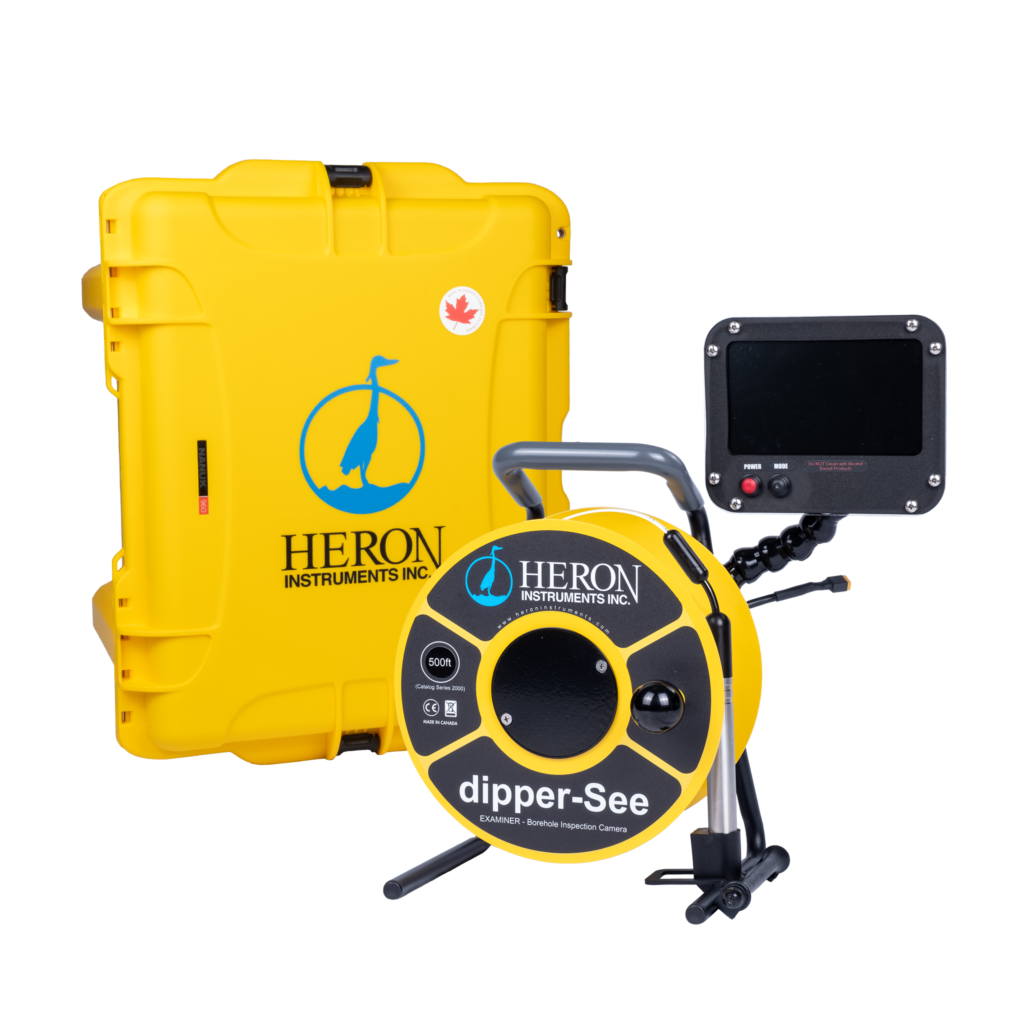

Heron dipper-See Examiner Downhole Inspection Camera

Price on request

The Heron dipper-See Examiner is a robust, cost effective, vertical downhole inspection camera ideal for viewing in wells, drains, vertical shafts, open bodies of water, boreholes and narrow tubes from 25mm diameter.

Clear
Add to Enquiry


Description

The Heron dipper-See Examiner Downhole Inspection Camera comes with everything a well inspector, well driller, or hydrogeologist needs to perform well inspections, maintenance, and installation quickly and accurately. The dipper-See Examiner and the included accessories are easily transported in the provided super tough wheeled carry case and accessory case, ideal for protecting your investment from the elements.
The adjustable positioning arm, conveniently attached to the frame, offers an ergonomic solution for adjusting the monitor for viewing the display screen at different angles and lighting conditions. The monitor conveniently houses all of the controls on the front of the panel.
The video/audio are recorded on the SD card provided with the DVR, for easy transfer to another device.

Features and Accessories included:
• Camera Probe – 22mm diameter, 316 marine grade, fully pressure rated, field replaceable
• Lens – robust, scratch resistant clear sapphire
• 160° – wide viewing angle
• LED Lights – 7 ultra-bright
• Monitor – resolution 600×1024, (7″), full colour, IP65
• Adjustable Positioning Arm – a solution for adjusting the monitor for viewing in various angles and lighting conditions
• Batteries (x2) – removable, rechargeable lithium ion, up to 5 hours (3200mAh) per battery
• Charger – plug type A, AC Input, compact, portable
• DVR– records video and audio feed
• SD Card – removable for transferring files to computer
• Microphone – 3.5mm jack, for audio voice over
• Centralizer – removable, centers and stabilizes camera probe in well
• Retrieval Hook – for light weight items
• Monitor Visor – for glare free viewing
• Hanger and Tape Guide – built-in, to support the unit at the well head and protect the tape from sharp edges
• Tape – polyethylene, 4 conductors
• Super Tough, Wheeled Case

Additional information

Probe size

25mm x 12cm

Length

150m, 300m

Tape Break Strength

127kg

Battery

2 x rechargeable Lithium Ion up to 5 hours (3200mAh) per battery

Warranty

2 Year Manufacturer’s Warranty

Functionality

Manual Measurement

Available for Rent

Yes

Supplier

Heron Instruments

Datasheet

Manual
