Stygo 4 – Low-Cost Groundwater Satellite Battery Powered IoT Sensor Hub

Price on request

Stygo4 is a groundwater Nanosatellite battery powered IoT sensor hub with integrated sensor options for groundwater level. Various mounting options includes bracket/pole and direct install to groundwater monuments/standpipe covers.

A DataStream Service is required with our modular systems for data and platform visualization and alerts. We offer a number of Service Levels ranging from the standard provision of data and visualization through to complete site and data management. More information about Service Levels can be found by clicking on this link.

Clear
Add to Enquiry
SKU: HYT-STYGO4 | Categories: , , , ,


Description

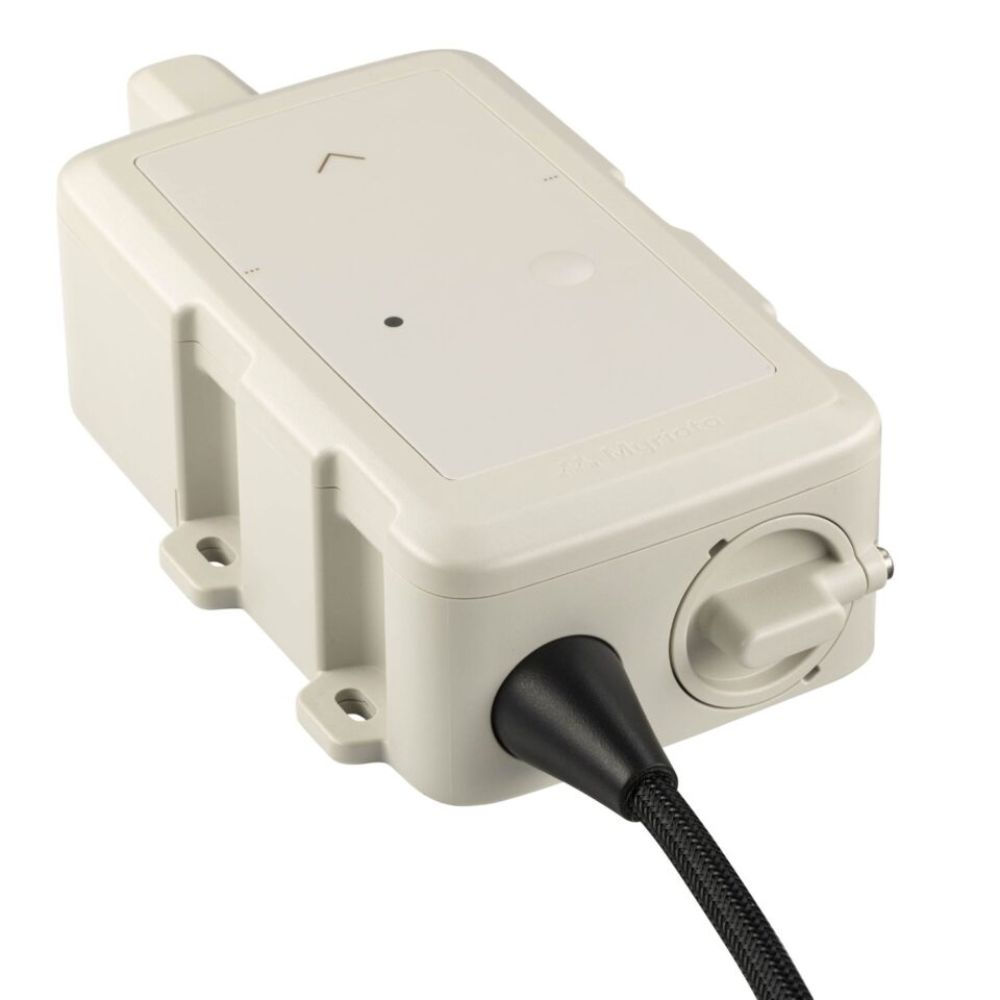

Stygo 4 is a low-cost groundwater Nanosatellite battery powered IoT sensor hub with integrated level sensor. Various mounting options includes bracket/pole and direct install to groundwater monuments/standpipe covers.  Connectivity is provided via Australian company Myriota’s Low Earth Orbiting constellation providing affordable, massively scalable, long battery life and global connectivity.

Features of the Stygo4 include:

  • Nanosatellite – retrieve data from anywhere on earth. Currently has a median latency of less than 4 hours.
  • Can integrate with most sensors via RS485
  • Waterproof IP67, UV resistant, compact and ultra-rugged housing with easy field access to the battery compartment and micro-USB port
  • Ultra-low power, multi-year life from 4 x AA lithium batteries (e.g. Energizer L91) or can be externally powered by a 12-24V input. Can achieve in excess of five years autonomous operation.
  • Global Navigation Satellite System (GNSS) for geolocation and tracking
  • Height 198mm (includes antenna and cable relief). Width 95mm, Depth 47mm, 3m Cable.
  • Battery Caddy – Unique battery locking mechanism. Grooved design to prevent incorrect insertion







Additional information

Functionality

Integrated Systems

Level Sensors Housing

Stainless Steel (316), Polypropylene

Power

Built-in replaceable 2 x AA Ultimate Lithium Energizer Batteries

Installation Options

Pole Bracket, Monument

Cable Length

5m -10m, 10m -20m, 20m-30m, 30m-40m, 40m-50m, 50m-60m, 60m-70m, 70m-80m, 80m-90m, 90m-100m, 100m +

Measurement Frequency

3hrs, 6hrs, 12hrs, 24hrs

DataStream Service Levels

SLA 1, SLA 2

Cable Material

Teflon (PTFE), Polyurethane (PUR), Polyethylene (PE)

Datasheet


Enquiry

Our sales staff are highly trained and would be happy to take your call or email to discuss any product or service. We provide obligation-free quotes on everything from single dataloggers to large monitoring programs!

The correct modular system will depend on a number of factors such as type of installation, standing water level variation, distance to groundwater, groundwater water quality, amount of reading and transmissions you require, etc. To allows us to narrow down the options and provide you with a quote can you please download the interactive questionnaire by clicking on this link. Please return the completed form to sales@hydroterra.com.au.
