Seametrics PT2X Pressure & Temperature Sensor

Read More

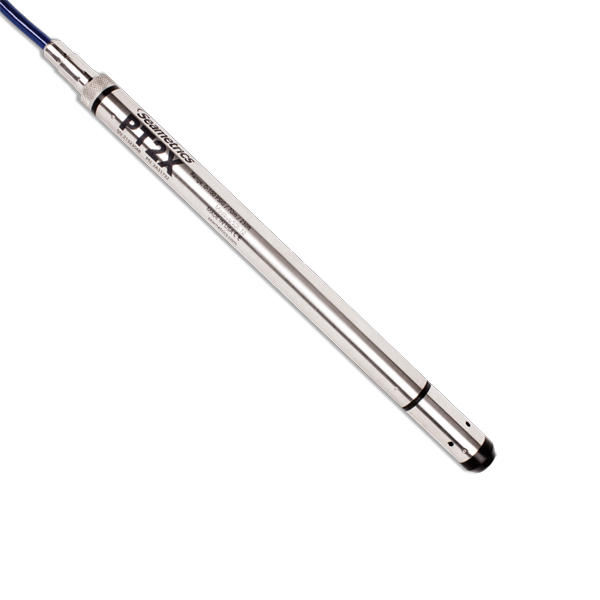

Seametrics PT2X Pressure & Temperature Sensor

Price on request

PT2X is ideal for observing flow patterns, testing pumps, and monitoring groundwater, well, tank and tidal levels.

Clear
Add to Enquiry
SKU: SM-PT2X | Categories: , ,


Description

Description
PT2X is ideal for observing flow patterns, testing pumps, and monitoring groundwater, well, tank and tidal levels.

A pressure and temperature sensor with integrated datalogging, this sensor is constructed with 316 stainless steel, fluoropolymer, PTFE-providing highly accurate readings in rugged and corrosive field conditions.

Features

Sensor

Measures pressure, temperature, and time
Available in absolute, gauge, or sealed gauge
Thermally compensated-great where water temperatures vary, such as in streams or industrial tank applications
± 0.05% FSO typical accuracy
Low power-2 internal AA batteries
External power options (12 VDC) with AA’s acting as backup
316 stainless steel, fluoropolymer, and PTFE construction (titanium optional)
Available for both Modbus® and SDI-12 protocols

Datalogger

Non-volatile memory-your data will not be lost in the event of a power failure
Flexible, multi-phase logging sequences-measure at your specified intervals and save instructions to disk for reuse
Pause logging feature-temporarily pause the logging while repositioning or transporting sensor
Delayed start feature-state a specific future start time, making it easy to set several sensors to start at the same time

Cabling & Networking

Wireless connectivity
RS485 network-allows several sensors to be networked together and provides much longer cable leads
Field-serviceable connectors-easily remove the connector, route cable through well seals, walls, or conduit, and then replace connector
Available cableless or with a variety of cable options, including polyethylene, polyurethane, and FEP

Software

Comes with free Aqua4Plus control software to get you up and running immediately
View your data in real-time
Easy export to spreadsheets and databases
Barometric compensation utility for use with absolute sensors
Update sensor via firmware while in the field-great for future updates or custom development

Applications

Wetland monitoring
Well, tank, tidal levels
River, stream, reservoir gauging
Stormwater runoff monitoring
Resource administration
Pump and slug tests

This product is compatible with Datastream.

Additional information

Sensor

PT2X Barometric Cabled, PT2X Barometric Cableless, PT2X Barometric Weatherproof box, PT2X Stainless, PT2X Stainless SV, PT2X Titanium, PT2X Titanium SV

Pressure

1 PSIg, 5 PSIg, 15 PSIg, 30 PSIa, 30 PSIg, 50 PSIa, 50 PSIg, 100 PSIa, 100 PSIg, 300 PSIa, 300 PSIg

Functionality

Data Logging Sensors, Integrated Systems

Available for Rent

No

Supplier

Seametrics

Datasheet
