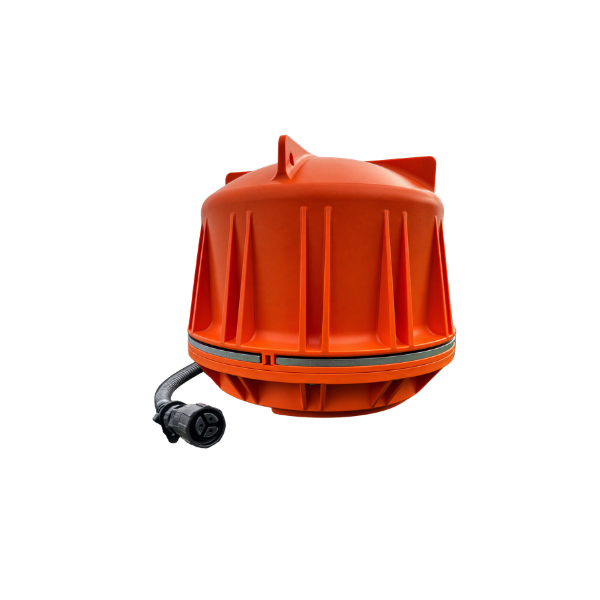

Sentek Bilby Underground Telemetry System

Price on request

The Sentek BILBY® is a fully underground telemetry unit that connects to a Sentek Drill & Drop™ soil moisture probe. It can wirelessly transmit data to a gateway for cloud-based monitoring without any above-ground infrastructure. It provides a discreet, reliable monitoring solution with long battery life and underground communication ranges of up to 150m.

Description

The Sentek BILBY® is an innovative underground telemetry device designed to work with Sentek Drill & Drop™ soil moisture probes, providing a completely below-ground monitoring solution. Connected via the SDI-12 protocol, the BILBY® wirelessly transmits data through the soil to a nearby gateway, which then uploads information to the cloud using Wi-Fi, Ethernet, or cellular communications. This enables remote access to soil moisture data while keeping all field hardware concealed and protected.
Engineered for reliability and minimal maintenance, the BILBY® features a long-life replaceable battery with more than eight years of operational life and can communicate with a gateway up to 150 metres away using underground wireless technology. Its rugged, out-of-sight design makes it ideal for agriculture, research, and environmental monitoring applications where equipment security, aesthetics, and uninterrupted data collection are important considerations.

Key Features:
• Underground telemetry solution
• Long-life battery
• Connects to a Sentek probe via SDI-12
• Data is transmitted via underground wireless technology to a Gateway up to 150m away.

Additional information

Communication	Operation distance up to 150 m from the Gateway when buried 30 cm below ground within dense canopy
Gateway	Compatible with Milesight SG50
Battery	Replaceable D Cell Li-Ion Primary Cell Battery with Supercap and connector – 8+ year battery life
Operating Temperature	-20 °C to +60 °C
Functionality	Integrated Monitoring System
Available for Rent	No
Supplier	Sentek Technologies

Datasheet
