Sentek IoT Data Transmission Unit

Price on request

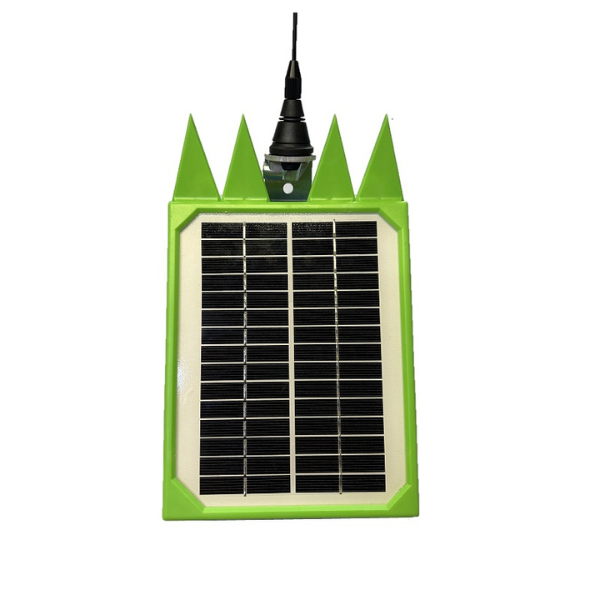

Sentek’s IoT DTU is an efficient, low-cost Data Transmission Unit (DTU) which partners with a Sentek Drill & Drop™ probe to connect to Sentek’s IrriMAX™ Live cloud platform using the latest low-power cellular technology.

Description

Sentek’s IoT DTU is an efficient, low-cost Data Transmission Unit (DTU) which partners with a RS232 Sentek Drill & Drop™ probe to connect to Sentek’s IrriMAX™ Live cloud platform using the latest low-power cellular technology. When the IoT DTU is paired with a Drill & Drop™ it provides the fastest installation methodology and is up-and-running in a matter of minutes.

Features:
• Built-in solar panel and rechargeable lithium-ion battery.
• Versatile mounting, with included bracket, to any pole using cable ties, pipe clamps or screws.
• External 7dB antenna on supplied bracket, or on a 4 m extension if required.
• Bird deterrer.
• 4G LTE CAT-M1 cellular technology for use in Australia (Telstra)
• Water-tight housing (IP68) protecting against moisture intrusion.
• Supports Drill & Drop™ probe with 14-pin connector (includes protective dust cover).
• Designed to easily open for maintenance such as SIM or battery replacement.
• Bluetooth® connection via smartphone app for first setup (10m operating range).
• Shipping mode support allowing battery to remain connected for transport.

Additional information

Mounting	Single bracket to an existing post using 2x 12 gauge self tapping screws or 2x4mm UV cable ties
Battery	3350 mAh (11.1 V) rechargeable Li-Ion battery with integrated protection
Solar Panel	3 W, 15 V
Functionality	Integrated Monitoring System, Telemetry
Available for Rent	No
Supplier	Sentek Technologies

Datasheet

Manual
