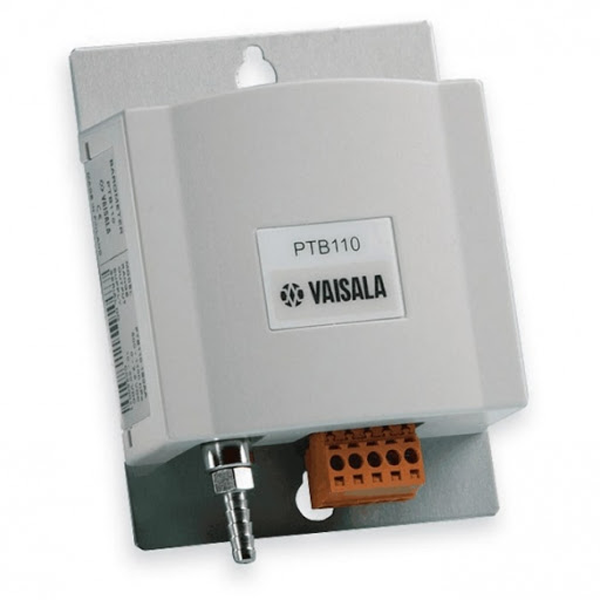

Vaisala Barometer PTB110

Price on request

The Vaisala Barometer PTB110 is designed both for accurate barometric pressure measurements at a room temperature and for general environmental pressure monitoring over a wide temperature range.

Add to Enquiry
SKU: PTB110 | Categories: ,


Description

Vaisala BAROCAP Barometer PTB110 is designed both for accurate barometric pressure measurements at a room temperature and for general environmental pressure monitoring over a wide temperature range.

The compact PTB110 is suitable for applications, such as environmental pressure monitoring, data buoys, laser interferometers, and in agriculture and hydrology.

Due to its very low power consumption, the barometer is particularly ideal for different data logger applications.

Features:
– Vaisala BAROCAP sensor
– Several pressure ranges
– Accuracy ±0.3 hPa at +20 °C
– Long-term stability
– Output voltage 0 … 2.5 or 0 … 5 VDC
– On/off control with external trigger
– Output voltage 0 … 2.5 or 0 … 5 VDC
– Current consumption less than 4 mA
– Mountable on a (35 mm wide) DIN rail

Excellent long-term stability of the barometer:
The PTB110 barometer uses the Vaisala BAROCAP® Sensor, a silicon capacitive absolute pressure sensor developed by Vaisala for barometric pressure measurement applications. The sensor combines the outstanding elasticity characteristics and mechanical stability of single-crystal silicon with the proven capacitive detection principle.

Accuracy and stability:
The excellent long-term stability of the barometer minimizes or even removes the need for field adjustment in many applications, such as environmental pressure monitoring, data buoys, laser interferometers, and in agriculture and hydrology.

Low power consumption:
The compact PTB110 is especially ideal for data logger applications as it has low power consumption. Also an external On/Off control is available. This is practical when the supply of electricity is limited.

This product is compatible with Datastream.

Additional information

Measures

Pressure

Accuracy

±0.3 hPa at 20 °C

Functionality

Bare Sensors

Available for Rent

No

Supplier

Vaisala

Datasheet

Manual


Vaisala’s core business is environmental measurement, especially weather measurement and chosen industrial measurements. Business is conducted by two business areas: Weather and Controlled Environment.

Weather business area serves selected weather-dependent markets where accurate, real-time, uninterrupted and reliable weather data is essential to run efficient operations. The customers include meteorological institutes, roads and rail authoritites, airport organizations, and defense forces. Energy and maritime industries represent the business area’s private sector customers. Weather provides products and solutions to support the customers’ operational decision making under any weather conditions. Vaisala products and services enable the customers to make effective operational decisions under any weather conditions, without compromising safety.
