Yabby 1 – Surface Water Cellular Battery Powered IoT Sensor Hub with Integrated Sensor Options

Price on request

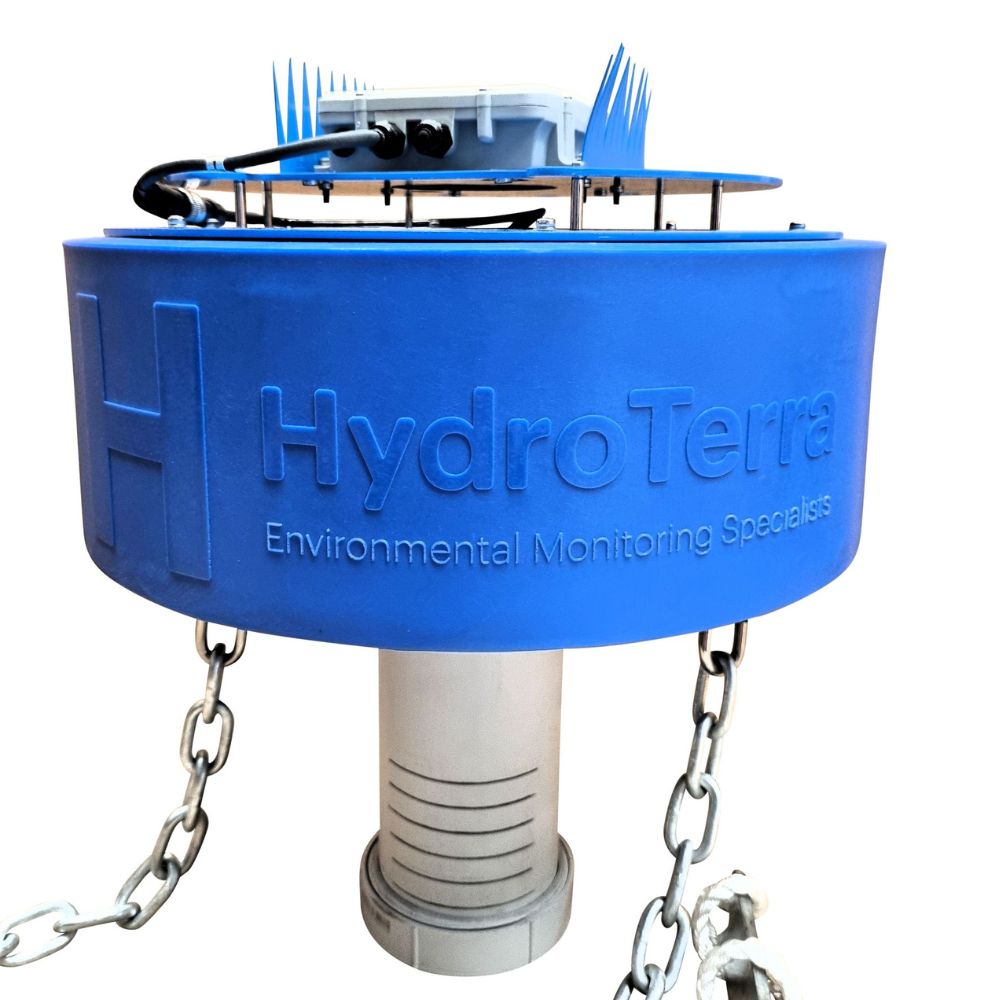

Yabby 1 is a surface water cellular battery powered IoT sensor hub with multiple integrated sensor options for surface water level, electrical conductivity and temperature monitoring. Various mounting options includes bracket/pole for tanks and waterways and floats for dams.  Ultra-low power consumption only requires D Cell batteries.  Connectivity is provided via Telstra’s Cellular LTE-M/NB-IoT Network.

A DataStream Service is required with our modular systems for data and platform visualization and alerts. We offer a number of Service Levels ranging from the standard provision of data and visualization through to complete site and data management. More information about Service Levels can be found by clicking on this link.

Clear
Add to Enquiry
SKU: HYT-YABBY1 | Categories: , , , ,


Description

Yabby 1 is a surface water cellular battery powered IoT sensor hub with multiple integrated sensor options for surface water level, electrical conductivity and temperature monitoring. Various mounting options includes bracket/pole for tanks and waterways and floats for dams.  Ultra-low power consumption only requires D Cell batteries.  Connectivity is provided via Telstra’s Cellular LTE-M/NB-IoT Network.

With a selection of integrated sensors, you can monitor groundwater water level, electrical conductivity and temperature for a number of applications.  The hubs are waterproof with an ultra-rugged IP68 housing and bespoke lightweight aluminum brackets. Depending on your requirements other bespoke options can include a feature-rich array of 9 inputs/outputs and multiple sensor connectivity.





Additional information

Inputs/Outputs

Cellular Option 1 Digital input/counter, 1 analog input, internal 3-axis digital accelerometer (optional), Built in battery monitoring, SDI-12 and MODBUS sensor data acquisition. Cellular Option 2 Flexible I/O Card Architecture caters for plug-in cards that define the 9 inputs/outputs, offering limitless options for interfacing to sensors such as SDI-12, I²C, 1-Wire, iButton, 4-20mA, RS-485, RS-232*, Analog Inputs, Digital Inputs, Pulse Counting, Digital Outputs, Switched Power, and more.

Functionality

Integrated Systems

Connectivity

Cellular

Level Sensors

Seametrics PT12, Seametrics PX2, Aquaread Level Line Mini, WNK 8010, No Level Sensor

Power

Cellular 1 Internal 13.0 Ah Lithium Thionyl providing up to 10 years maintenance free operation. 20μA max (Low power operation), 2 mA (AI sampling w/o sensors), ~50mA (Alarm messaging). Cellular 2 Choice of 3500mAh LiPo rechargeable battery with solar panel or 2 x D Cell LTC batteries for a completely self-powered solution. Input Voltage 6-28V DC (max).

Combined Level EC Sensors

Aquaread Level Line Mini CTD, Seametrics CT2X, No Combined Level EC Sensor

Installation Options

Pole, Tank, Creek, Dam (Float)

Cable Length

5m -10m, 10m -20m, 20m-30m, 30m-40m, 40m-50m, 50m-60m, 60m-70m, 70m-80m, 80m-90m, 90m-100m, 100m +

Measurement Frequency

10min – 30Min, 30m-1hr, 1hr-4hrs, 4 times per day, 2 times per day

Transmission Frequency

15m-30m, 30m-1hr, 1hr-4hrs, 4 times per day, 2 times per day

DataStream Service Levels

SLA 1, SLA 2

Datasheet


Enquiry

Our sales staff are highly trained and would be happy to take your call or email to discuss any product or service. We provide obligation-free quotes on everything from single dataloggers to large monitoring programs!

The correct modular system will depend on a number of factors such as type of installation, standing water level variation, distance to groundwater, groundwater water quality, amount of reading and transmissions you require, etc. To allows us to narrow down the options and provide you with a quote can you please download the interactive questionnaire by clicking on this link. Please return the completed form to sales@hydroterra.com.au.
