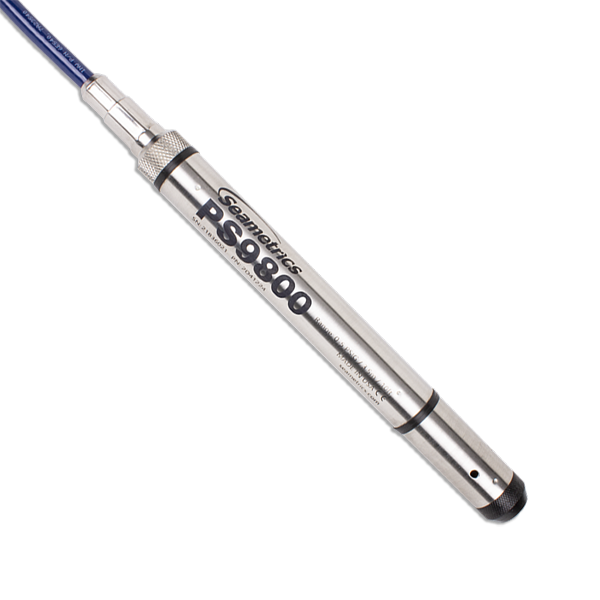

Seametrics PS9800 Analog Sensor

Read More

Seametrics PS9800 Analog Sensor

Price on request

Similar to the PS98i, the PS9800 pressure transmitter offers noise immunity, transient protection, and thermal stability.

Clear
Add to Enquiry


Description

Similar to the PS98i, the PS9800 pressure transmitter offers noise immunity, transient protection, and thermal stability.

This sensor also includes added thermal compensation to offer pinpoint accuracy, typically within 0.06% FSO, making it ideal for sites where reliable readings are a must.

Features
Optional temperature channel
Industry standard, 2-wire, 4-20 mA configuration
Absolute or gauge
± 0.06% FSO typical accuracy
Operates on low power
316 stainless steel, fluoropolymer, PTFE construction (titanium option available)
Available with a variety of cable options-polyethylene, polyurethane, or FEP
1/4 NPT end cone adapter option
Narrow 0.75″ diameter, 8″ length

Interference Compensations & Resistance
Thermally compensated-great where water temperatures vary, such as in streams or in industrial tank applications
Reverse polarity protection
Under- and over-current limitation
Built-in transient protection
Optional lightning protection available
Calibrated with patented calibration procedures and NIST traceable equipment

Applications
Pump and slug tests
River, stream and reservoir gauging
Stormwater runoff monitoring
Wetland monitoring
Well, tank and tidal levels
Flow monitoring
Water resource management
Landfill leachate levels
Control applications

This product is compatible with Datastream.

Additional information

Sensor

PS9800 Pressure & Temperature Stainless, PS9800 Pressure & Temperature Titanium, PS9800 Pressure Stainless, PS9800 Pressure Titanium

Pressure

5 PSIg, 15 PSIg, 30 PSIa, 30 PSIg, 50 PSIa, 50 PSIg, 100 PSIa, 100 PSIg, 300 PSIg

Functionality

Bare Sensor

Available for Rent

No

Supplier

Seametrics
