Yabby 3 – Surface Water Satellite Solar Powered IoT Sensor Hub with Integrated Sensor Options

Price on request

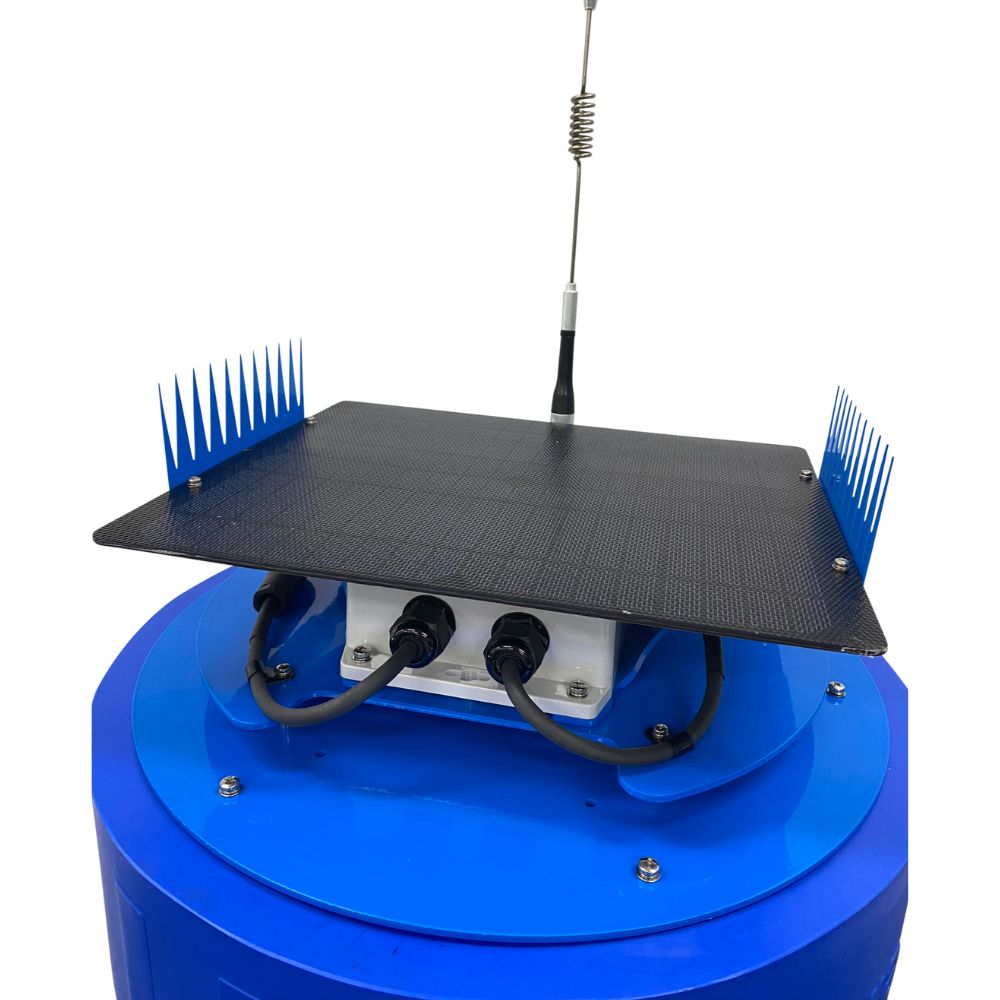

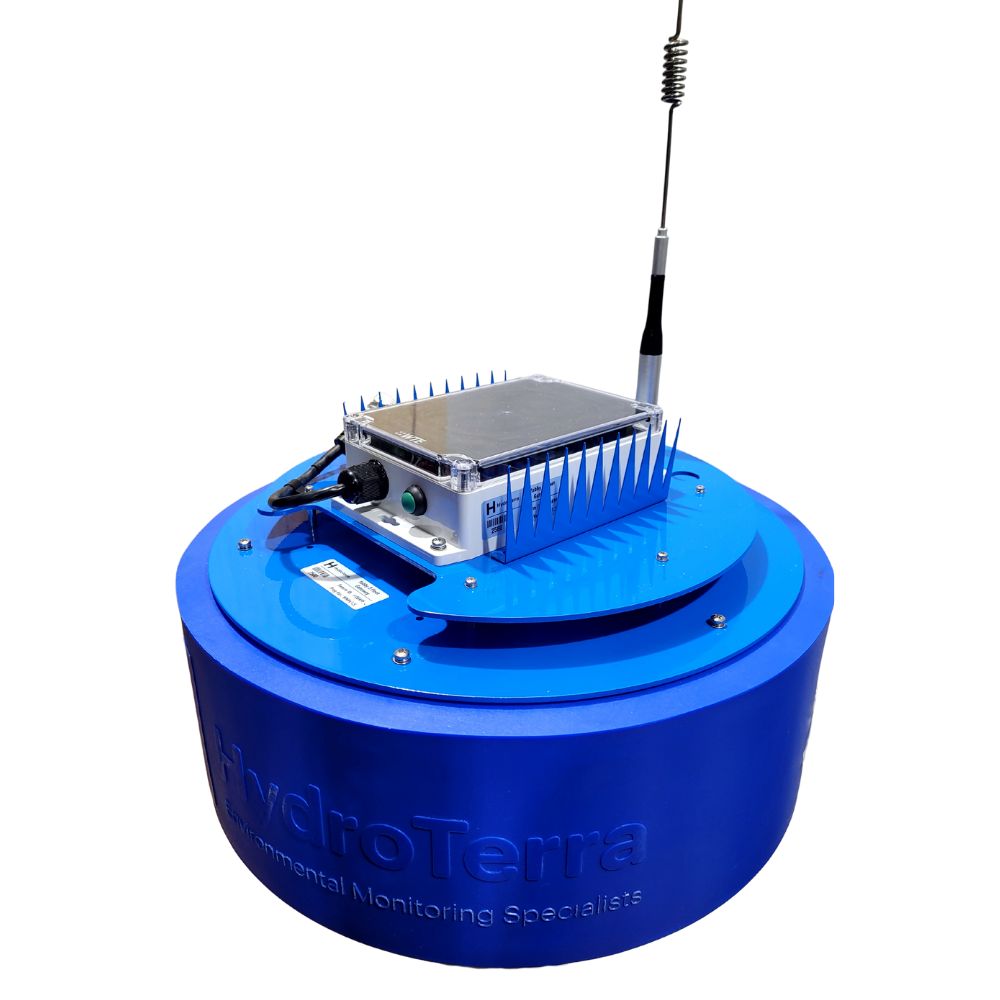

Yabby 3 is a surface water satellite solar powered IoT sensor hub with multiple integrated sensor options for surface water level, electrical conductivity and temperature monitoring. Various mounting options includes pole, tank, steam and dam (float).

A DataStream Service is required with our modular systems for data and platform visualization and alerts. We offer a number of Service Levels ranging from the standard provision of data and visualization through to complete site and data management. More information about Service Levels can be found by clicking on this link.

Clear
Add to Enquiry


Description

Yabby 3 is a surface water satellite solar powered IoT sensor hub with multiple integrated sensor options for surface water level, electrical conductivity and temperature monitoring. Various mounting options includes pole, tank, steam and dam (float). Connectivity is provided via SWARM Spaces constellation of 120 satellites that is currently has an average latency of less than 30 minutes and provides the largest low-cost data plans available – 144kB to 576kB/month.

With a selection of integrated sensors, you can monitor groundwater water level, electrical conductivity and temperature for a number of applications.  The hubs are waterproof with an ultra-rugged IP68 housing and bespoke lightweight aluminum brackets. Depending on your requirements other bespoke options can include a feature-rich array of inputs/outputs and multiple sensor connectivity.





Additional information

Inputs/Outputs

Digital Inputs – 2 (tie to GND to operate), Analog Inputs – 1 x 12-bit resolution (0-15V), Digital Outputs – 2 Open Drain, Serial Interfaces – RS422, RS485, RS232 (9600:8-N-1 baud)

Functionality

Integrated Systems

Level Sensors

Seametrics PT12, Seametrics PX2, Aquaread Level Line Mini, WNK 8010, No Level Sensor

Power

Solar Panel 6V, 500mA, Optional External supply voltage Min 6V, Max 9V. Internal Rechargeable Battery 3 HHR-380A (3800mAh NiMH). Operating Current: Receiving 200uA, UHF Transmit 95mA, Satellite Transmit 1A, Standby<300nA in transmit only standby.

Combined Level EC Sensors

Aquaread Level Line Mini CTD, Seametrics CT2X, No Combined Level EC Sensor

Installation Options

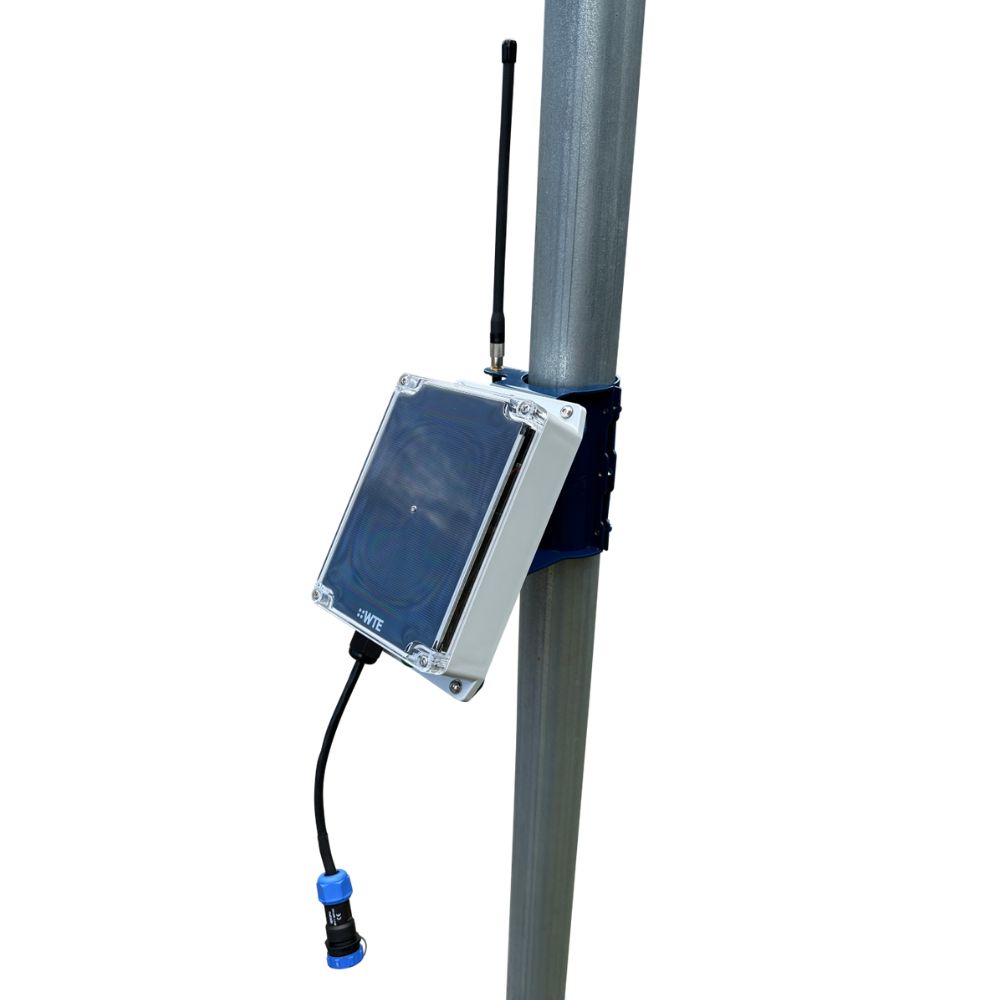

Pole, Tank, Stream, Dam (float)

Cable Length

5m -10m, 10m -20m, 20m-30m, 30m-40m, 40m-50m, 50m-60m, 60m-70m, 70m-80m, 80m-90m, 90m-100m, 100m +

Measurement Frequency

1hr-4hrs, 4 times per day, 2 times per day

Transmission Frequency

1hr-4hrs, 4 times per day, 2 times per day

DataStream Service Levels

SLA 1, SLA 2

Supplier

HydroTerra

Datasheet


Enquiry

Our sales staff are highly trained and would be happy to take your call or email to discuss any product or service. We provide obligation-free quotes on everything from single dataloggers to large monitoring programs!

The correct modular system will depend on a number of factors such as type of installation, standing water level variation, distance to groundwater, groundwater water quality, amount of reading and transmissions you require, etc. To allows us to narrow down the options and provide you with a quote can you please download the interactive questionnaire by clicking on this link. Please return the completed form to sales@hydroterra.com.au.
