Solinst 103 Tag Line (laser marked)

Read More

Available for Rent, price on enquiry.

Solinst 103 Tag Line (laser marked)

Price on request

The Solinst 103 Tag Line uses a weight attached to a laser marked cable or tape and is principally designed for use during the installation of monitoring wells. It also provides a simple method to measure the depth to the bottom of a well and is ideal as a marked support line for bailers and pumps.

Add to Enquiry
SKU: 103-TAG | Categories: , , Tag:


Description

The Solinst 103 Tag Line uses a weight attached to a laser marked cable or tape and is principally designed for use during the installation of monitoring wells. The Tag Line also provides a simple method to measure the depth to the bottom of a well.

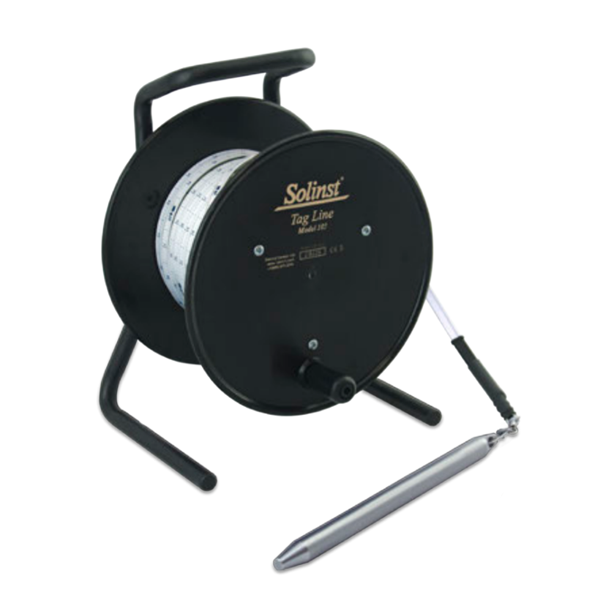

The cable or tape is mounted on a sturdy free-standing reel with a carrying handle, weight holder and brake.

The Tag Line accurately measure depth to backfill during well construction.
The weight can be clipped off, allowing the cable or tape to be used as a measured safety support line for deployment of bailers, pumps, samplers and packers.

PVDF Laser Marked Cable
The durable PVDF coated 1.6 mm stranded stainless steel wireline has a minimum break strength of 122kg. It comes in standard lengths of 30m to 300m. Other lengths are available by request. Markings are clearly and accurately laser etched every 5 cm.

PVDF Laser Marked Flat Tape
The 10mm PVDF flat tape has a break strength of greater than 100kg. The tape comes with laser markings each millimeter. Lengths are 30m to 300m. Other lengths are available on request.

316 Stainless Steel Tags
The standard 19mm stainless steel tag weight is 0.68kg.
A narrow 13mm tag weight, weighing 0.30kg, is also an option.

Additional information

Tag Weight Size

1/2" x 1ft. (13mm x 30cm), 3/4" x 1ft. (19mm x 30cm)

Lengths

30 m, 60 m, 100 m, 150 m, 250 m, 300 m

Functionality

Manual Measurement

Available for Rent

Yes

Supplier

Solinst

Datasheet

Manual
