Geolux RSS-2-300WL High Precision Non-Contact Open Channel Flow Velocity & Level Meter

Read More

Geolux RSS-2-300WL High Precision Non-Contact Open Channel Flow Velocity & Level Meter

Price on request

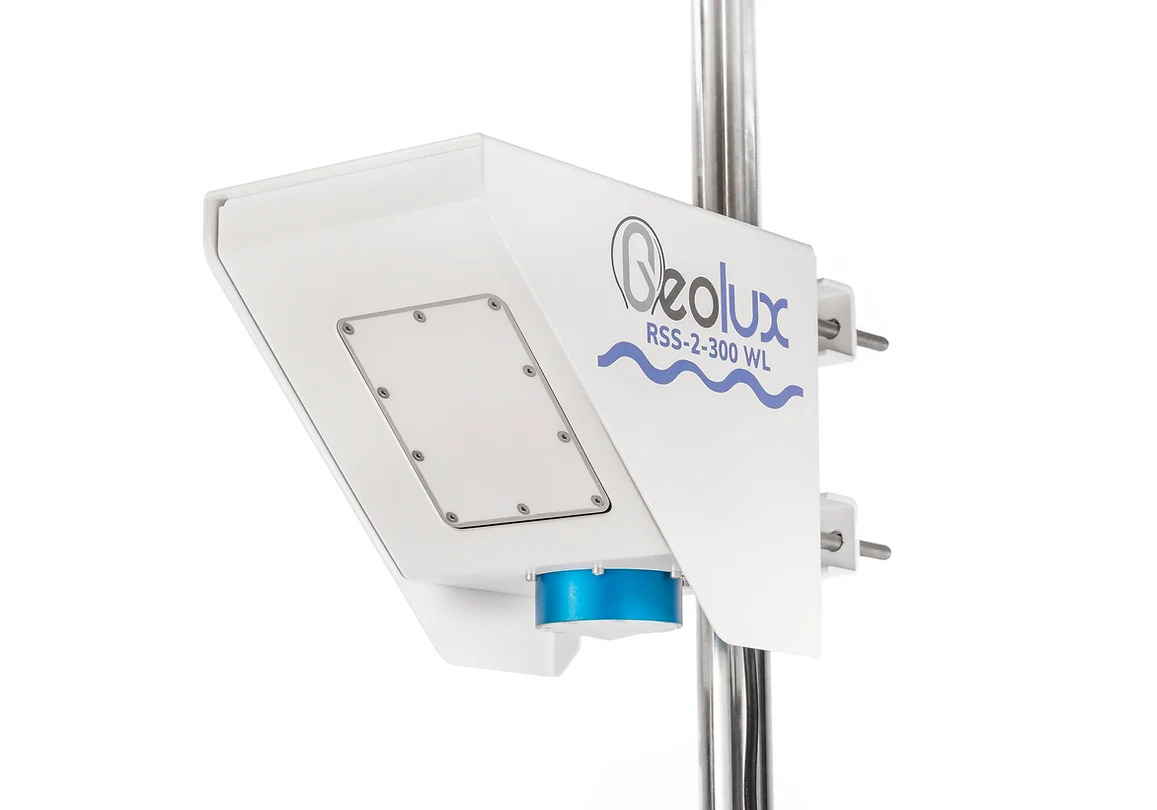

The Geolux RSS-2-300WL has an integrated radar surface velocity and level meter for contactless measurements of surface flow velocity and water level.

Clear
Add to Enquiry
SKU: RSS-2-300WL | Categories: , , , ,


Description

The Geolux RSS-2-300WL has an integrated radar surface velocity and level meter for contactless measurements of surface flow velocity and water level. Contactless radar technology enables quick and simple sensor installation above the water surface with minimum maintenance.
Calculation of the total flow discharge is internally implemented within the instrument by combining surface velocity measurement, water level measurement, and a configured cross-section of the river or channel. Defining the measurement parameters such as profile cross-section, material of the edges, location of the sensor above the water, and all other instrument settings can be easily set with the Geolux configuration application using any available communication interface.

Applications:
• Early flood warning
• Monitoring of flow and irrigation channels
• Accurate discharge monitoring in rivers
• Flow tracking in salt and copper mine channels
• Sewage and wastewater discharge measurement

Additional information

Detection Range

15m, 30m, 35m

Accuracy

± 2 mm (Level), 1% (Speed)

Velocity Sensor Beam Width

Azimuth: 12°, Elevation: 24°

Level Sensor Beam Width

Azimuth: 5° (± 2.5°), Elevation: 5° (± 2.5°)

Functionality

Bare Sensor

Available for Rent

No

Supplier

Geolux

Datasheet

Manual
