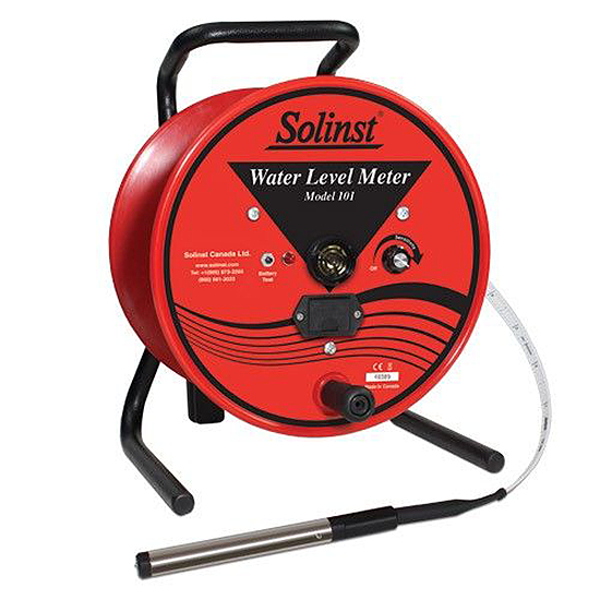

Solinst 101 Water Level Meter

Price on request

The Solinst 101 Water Level Meters are the industry standard for portable hand operated meters for measuring the depth to water in wells, boreholes, standpipes, and tanks. There are two versions to choose from.

Clear
Add to Enquiry
SKU: 101-WLM | Categories: , Tag:


Description

For measuring the depth to water in wells, boreholes, standpipes, and tanks, the Solinst 101 Water Level Meters are the industry standard for portable hand operated meters. They are sturdy, easy to use and accurate to each millimeter. There are two probe versions to choose from.
Solinst 101 with P7 Probe

The P7 Probe (16mm x 137mm) is pressure proof rated to 500psi and is submersible to the full length of the tape; therefore, you can measure total well depth in ideal conditions. The sensor at the tip of the probe provides consistent measurements with almost zero displacement. The tape seal plug design allows the probe to be quickly and easily replaced, if required

The Solinst 101 P7 Water Level Meter uses extremely durable, PVDF flat tape, traceable to NIST and EU measurement standards. The tape is non-stretch and high in tensile strength and electrical efficiency. The tape has a thick dog bone design that prevents adherence to wet surfaces and allows it to hang straight in application. It is also easy to splice. The 10 mm tape comes with permanent laser markings each millimeter, in lengths from 30m – 1500m.
Solinst 101 with P2 Probe

The P2 Probe (14mm x 190 mm) is shielded in design to reduce or eliminate false readings in cascading water. The probe consists of a stainless-steel body with a neoprene heat shrink seal. It is not suitable for submergence to any significant depth. It’s simple design makes it easy to repair.

The Solinst 101 P2 Water Level Meter uses high quality polyethylene tape that reels smoothly, remains flexible and hangs straight in the well. Heat embossed marking each millimeter allow accurate readings. The 10 mm wide tapes come in lengths from 30m – 300m.

Additional information

Probe size

P2 – 0.55"x 7.5" (14mm x 190mm), P7 – 5/8” x 5.38” (16mm x 137mm)

Length

Custom Lengths 300m+(P7 only), 30m, 60m, 100m, 150m, 200m (P7 only), 250m, 300m

Operating Temperature

-20ºC to +50ºC

Functionality

Manual Measurement

Available for Rent

Yes

Supplier

Solinst

Datasheet

Manual

Additional Documents
