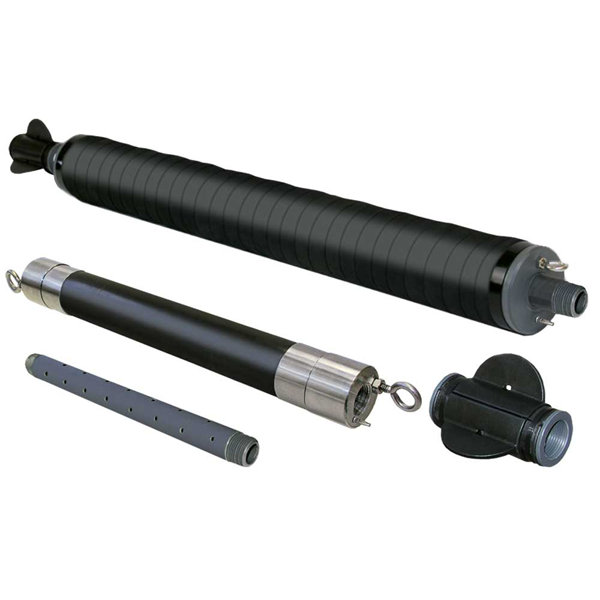

Solinst Model 800 Low Pressure Pneumatic Packers

Price on request

The Solinst 800 Low Pressure Pneumatic Packers are used to isolate a discrete zone in a well or borehole to prevent the mixing of soil gas or groundwater at that particular depth allowing subsurface investigations to focus on the isolated zone only.

Clear
Add to Enquiry


Description

The Solinst 800 Low Pressure Pneumatic packers are available in two diameters as single or straddle packers primarily for use in 2″ (50mm) and 4″ (100mm) monitoring wells or smooth boreholes. They can be inflated by using a hand pump to a maximum of up to 50psi (345 kPa).

The Packers utilize a gland of black carbon reinforced rubber (BCR) on a Sch 80 PVC body. They are lowered on a support cable or a rigid PVC drop pipe. If a rigid drop tube is not required for your application, it is recommended to attach a safety line to the eyebolt provided.



Applications

• Isolating discrete zones for short term monitoring:

• Water sampling

• Hydraulic conductivity testing

• Datalogging with a Levelogger

• Minimizing purge volumes

• Reducing well development time

• Slug and pumping tests

• Injection of tracers, amendments or other materials

• Air sparging (low pressure)

Additional information

Maximum Submergence

46m

Functionality

Sampling

Available for Rent

No

Supplier

Solinst

Datasheet

Manual
