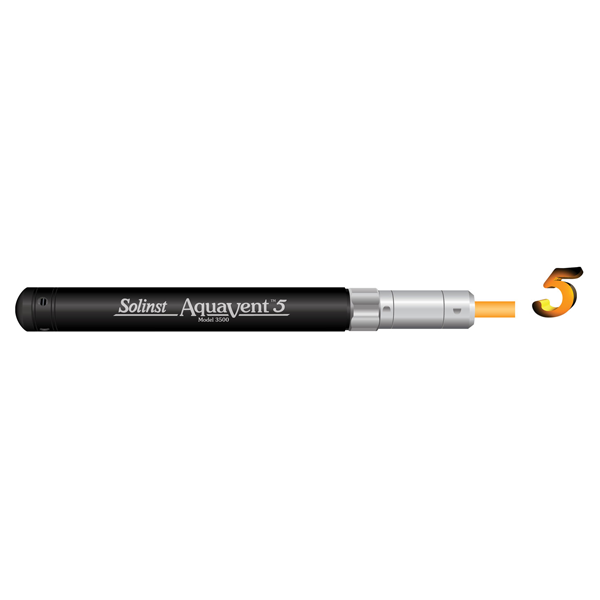

Solinst 3500 AquaVent 5

Price on request

The AquaVent 5 Vented Water Level Datalogger records accurate water level and temperature measurements in shallow groundwater and surface water applications.

Clear
Add to Enquiry
SKU: 3500-SAV5 | Categories: , ,


Description

The AquaVent 5 Vented Water Level Datalogger records accurate water level and temperature measurements in shallow groundwater and surface water applications. It combines Pressure & Temp Sensors, hydrophobic filters and datalogger within a 22 mm x 173 mm (7/8″ x 6.8″) stainless steel housing with corrosion-resistant coating.

The AquaVent 5 uses a gauged pressure transducer; it is open to the atmosphere via a vented cable to surface. Atmospheric pressure is applied to the transducer diaphragm, providing a cancellation effect for barometric pressure. This results in actual water level recordings.

The vented cable and Solinst AquaVent 5 logger are protected from moisture by built-in desiccants and hydrophobic filters.

The vented pressure transducer is made of Hastelloy®, making it extremely durable and accurate in a wide range of temperature and monitoring conditions. The sensor provides an accuracy of 0.05% FS, and can withstand 2 times over-pressure without permanent damage.

The robust memory can hold up to 150,000 data sets when programmed in Solinst Levelogger® Software.

AquaVent 5 Applications

Ideal for shallow applications: up to 65 ft (20 m) submergence
Aquifer characterization: pumping tests, slug tests, etc.
Stream gauging, lake and reservoir management
Watershed, drainage basin and recharge monitoring
Stormwater and runoff monitoring
Long-term water level monitoring in wells and surface water

AquaVent 5 Features
Gauged pressure sensor for highly-accurate water level measurements: 0.05% FS
Multiple built-in hydrophobic filters and desiccants – no need to replace, reduces maintenance.

Easy-to-access, user-replaceable batteries in Wellhead
Options for MODBUS (RS-232/RS-485) and SDI-12
Separate cables for each communication protocol
Corrosion and abrasion-resistant coating baked-on using polymerization technology

AquaVent 5 Benefits
Automatic barometric compensation reduces time required for post data processing
Integrate into a third-party data collection system for remote real-time data
Continuous, reliable water level data for long-term monitoring projects
Actual water level readings for instant aquifer test results

This product is compatible with STS Edge and Datastream.

Additional information

Accuracy

0.1% FS

Depth

10 meters, 20 meters, 5 meters

Functionality

Data Logging Sensors, Integrated Systems

Available for Rent

No

Supplier

Solinst

Datasheet

Manual
